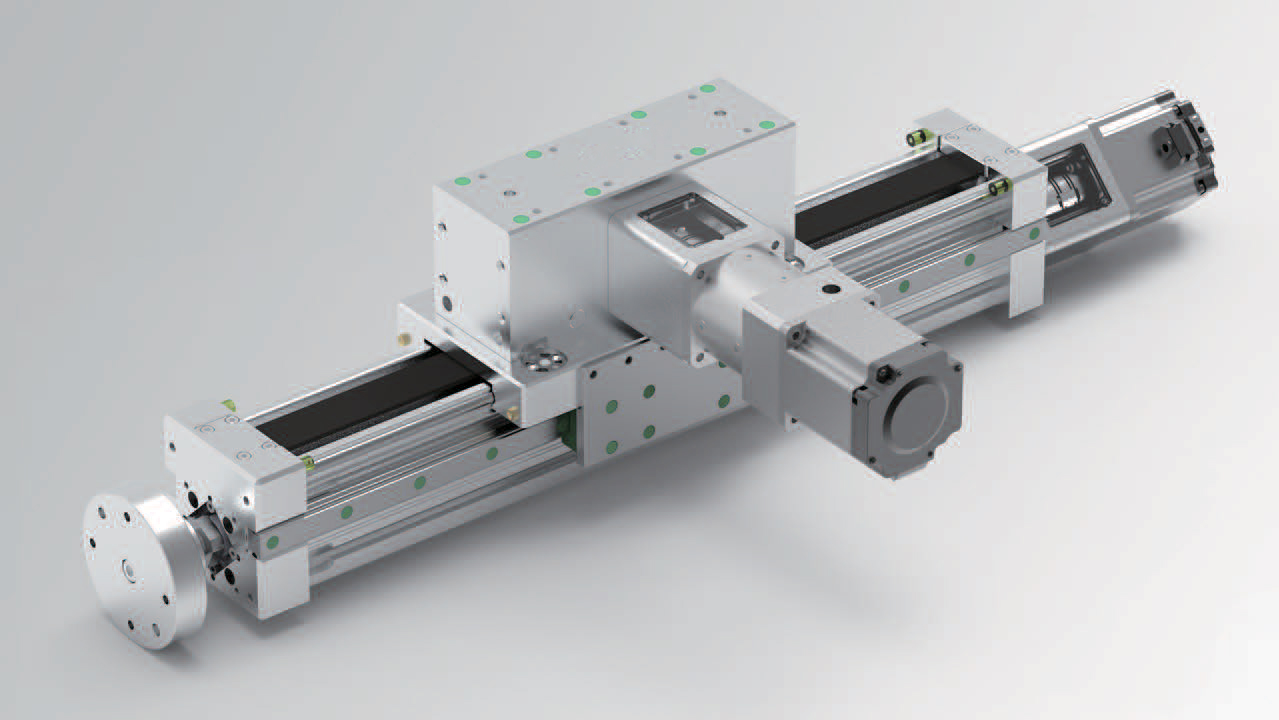

- Compatible Motor Size (AC): 400W / 750W
- Guide Rod Diameter: 10mm
- Lead (mm): 112
- Horizontal Max Payload (kg): N/A
- Vertical Max Payload (kg): 30
- Repeatability: ± 0.05mm
- Max Stroke: 1,500mm

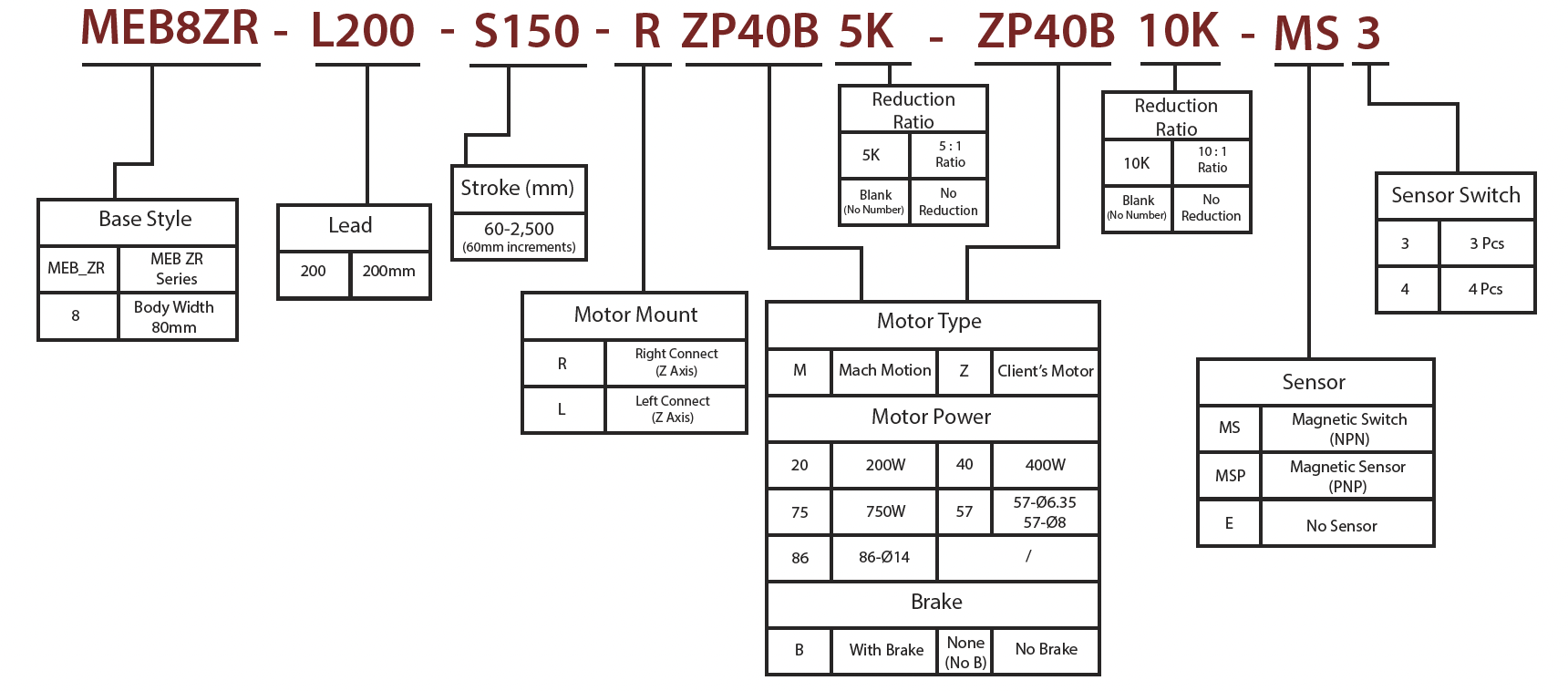

Part Number Configurator
Technical Specifications
| Motor Power (W) | Z-Axis Motor | Rotary Shaft Motor | |
| 750W | 400W / 750W | ||
| Drive Type | Timing Belt | Connecting Rod | |
| Repeatability (mm) | ±0.05 | ||
| Lead (mm) | 112 | ||
| Max. Speed (mm/sec) | 1,500 | 1,080°/sec | |
| Maximum Payload (kg) | Horizontal | / | |
| Vertical | 30kg | ||
| Synchronous Wheel Diameter (mm) | 63.7 | ||
| Linear Guide (mm) | 20X15.5-2 | ||
| Connecting Rod Diameter (mm) | 25 | ||
| Synchronous Belt Width | S5M350 | ||
| Synchronous Belt Tension (N) | 765 | ||
| Guide Rod Diameter (mm) | 10 | ||
| Body Length (mm) | ≤1,500 | ||
| Sensor (Magnetic) | DMSH-NPN | ||

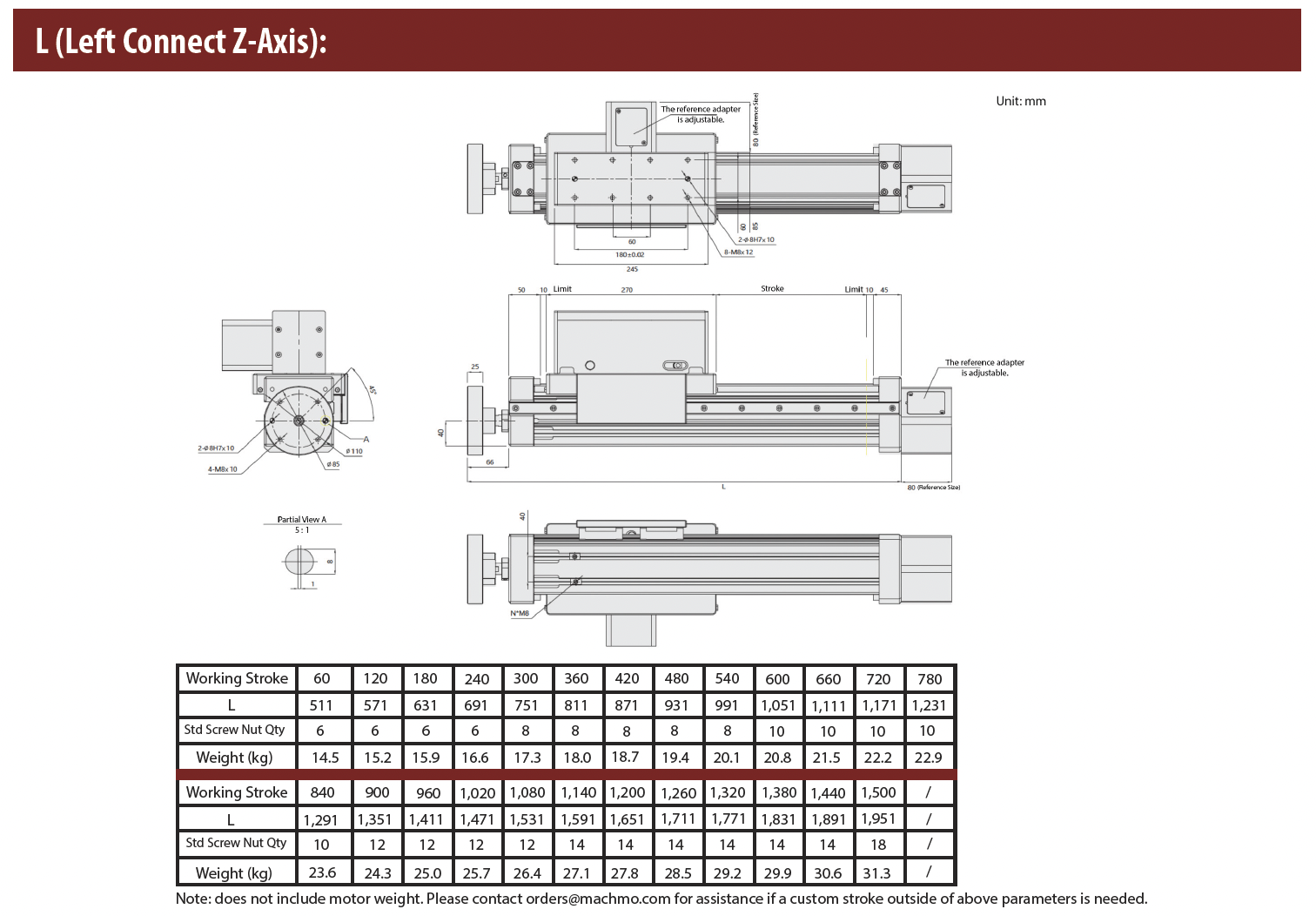

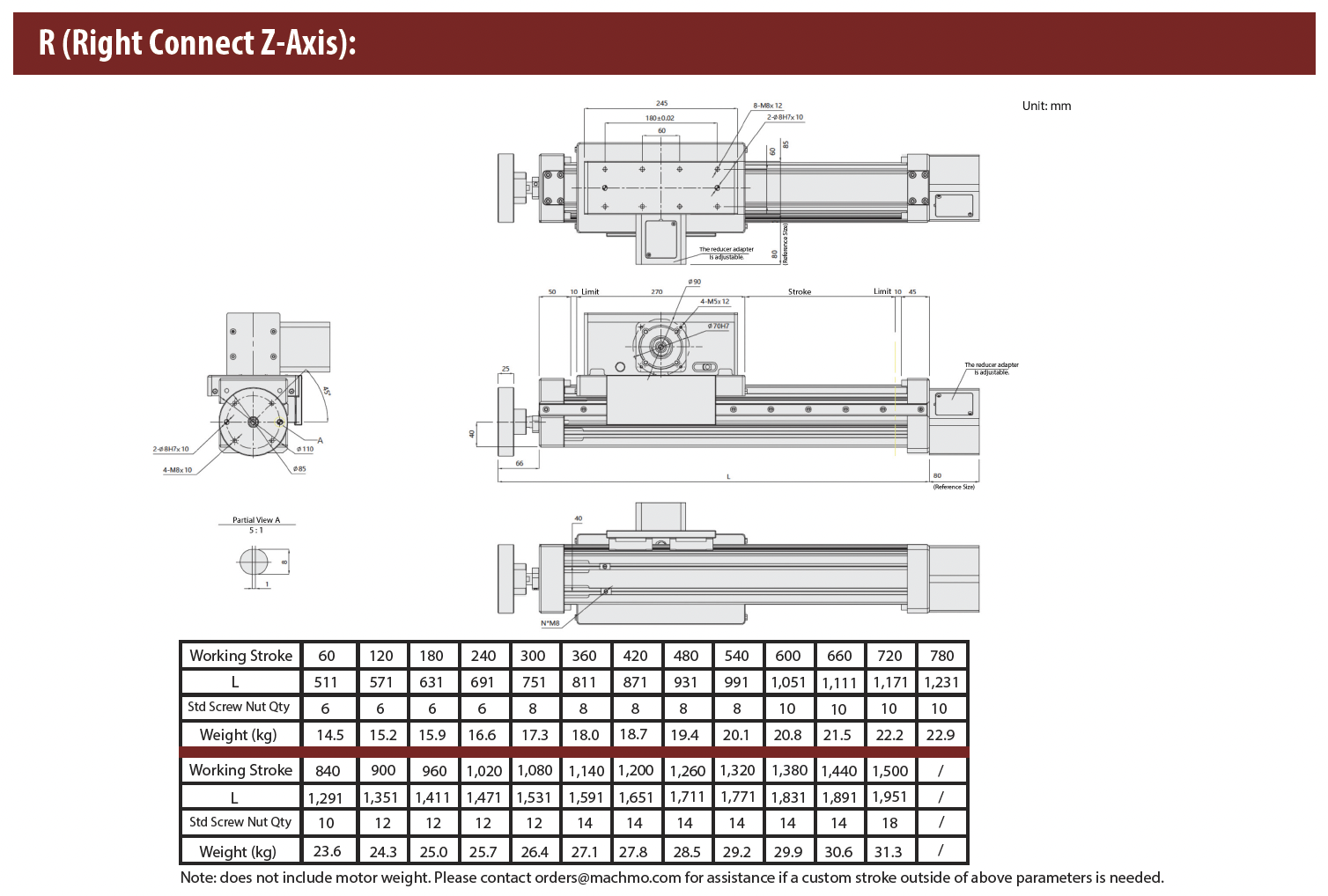

Dimensions

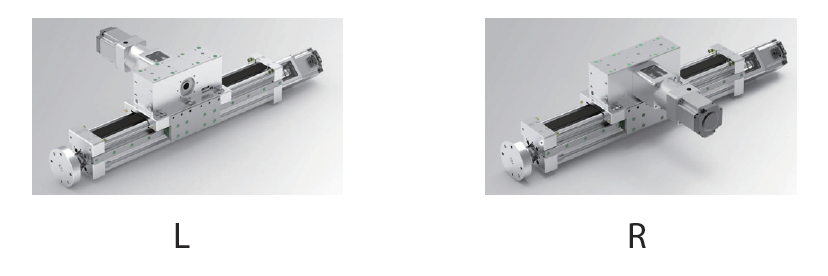

Motor Mount Location
Downloads
Catalog Download: MEB Actuator Catalog.pdf
