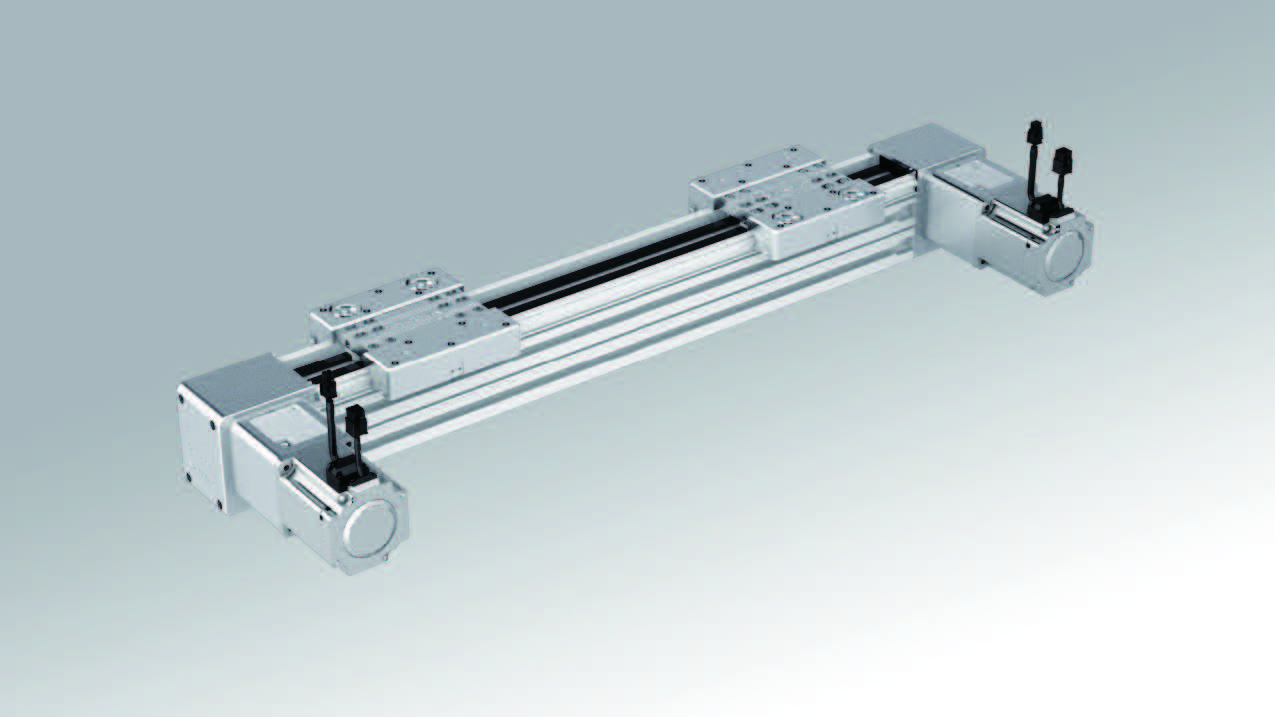

Compatible Motor Size (AC): 400W / 750W / 86 steppers- Guide Rod Diameter: 10mm
- Lead (mm): 100 / 200
- Horizontal Max Payload (kg): 15
- Vertical Max Payload (kg): 7
- Repeatability: ± 0.05mm
- Max Stroke: 4,500mm
Part Number Configurator
Technical Specifications
| Motor Power (W) | 400W / 750W / 86 stepper | ||
| Drive Type | Timing Belt | ||
| Repeatability (mm) | ±0.05 | ||
| Lead (mm) | 100 | 200 | |
| Max. Speed (mm/sec) | 5,000 | 10,000 | |
| Maximum Payload (kg) | Horizontal | 15 | |
| Vertical | 7 | ||
| Static Allowable Torque | Mx (Nm) | 85 | |
| My (Nm) | 130 | ||
| Mz (Nm) | 170 | ||
| Dynamic Allowable Torque | Mx (Nm) | 60 | |
| My (Nm) | 85 | ||
| Mz (Nm) | 125 | ||
| Synchronous Wheel Diameter (mm) | 63.70 | ||
| Synchronous Belt Width | S5M100 | ||
| Synchronous Belt Tension (N) | 215 | ||
| Guide Rod Diameter (mm) | 10 | ||
| Body Length (mm) | ≤4,500 | ||
| Sensor (Magnetic) | DMSH-NPN | ||

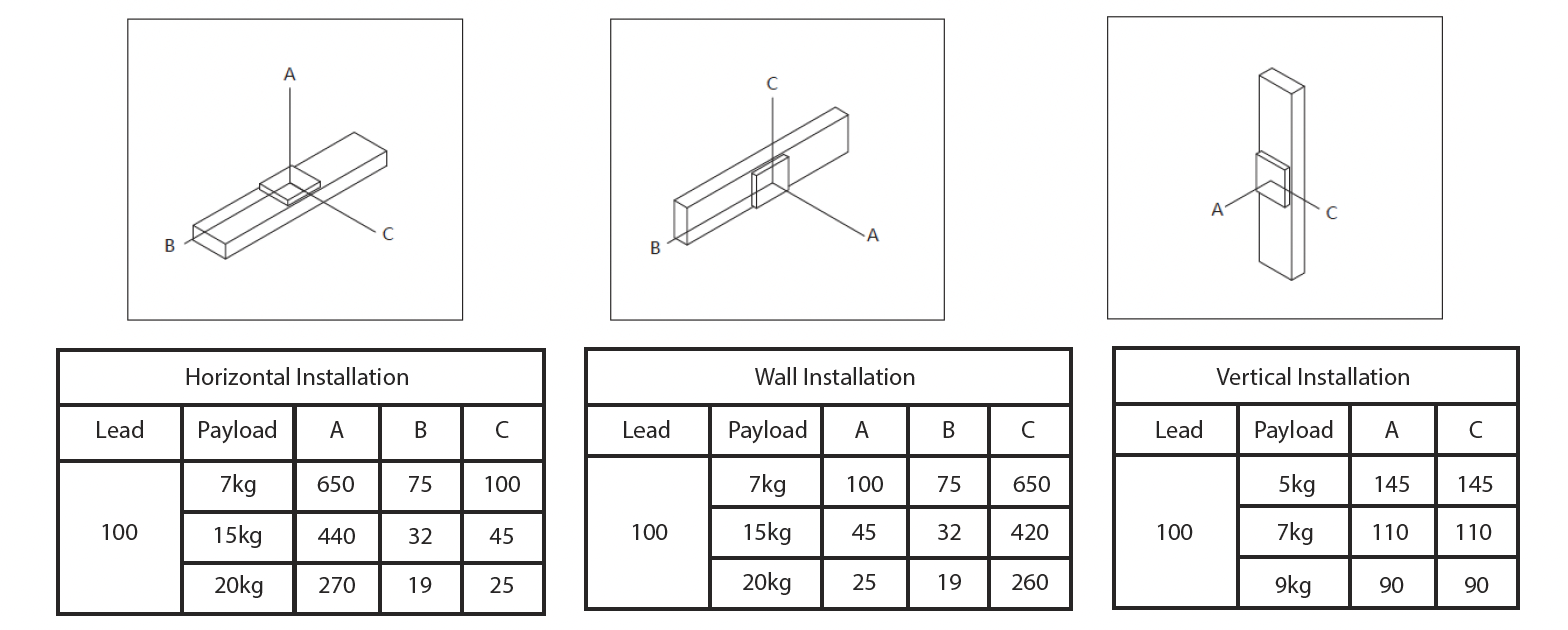

Maximum Static Torque
Maximum Static Torque

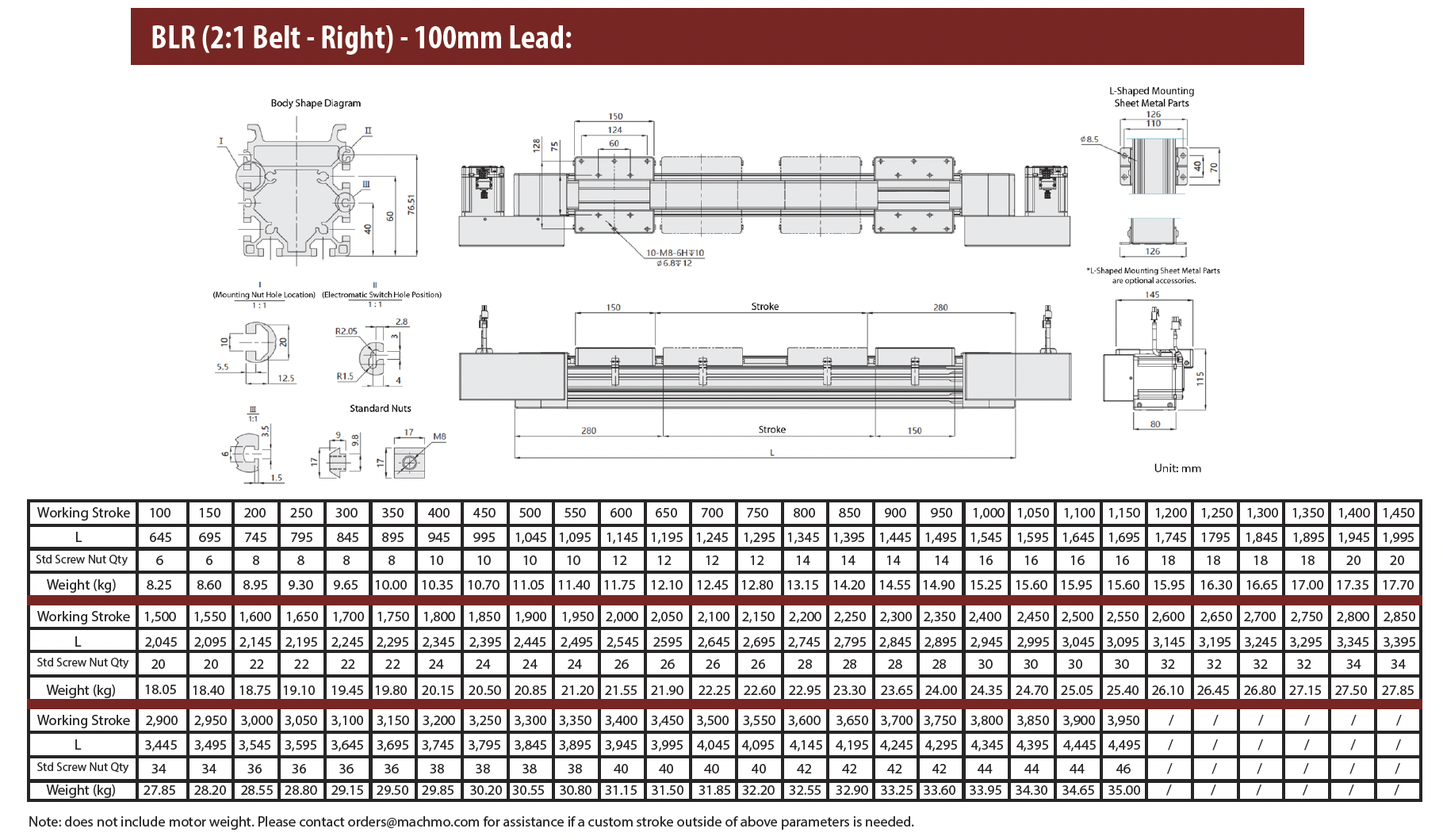

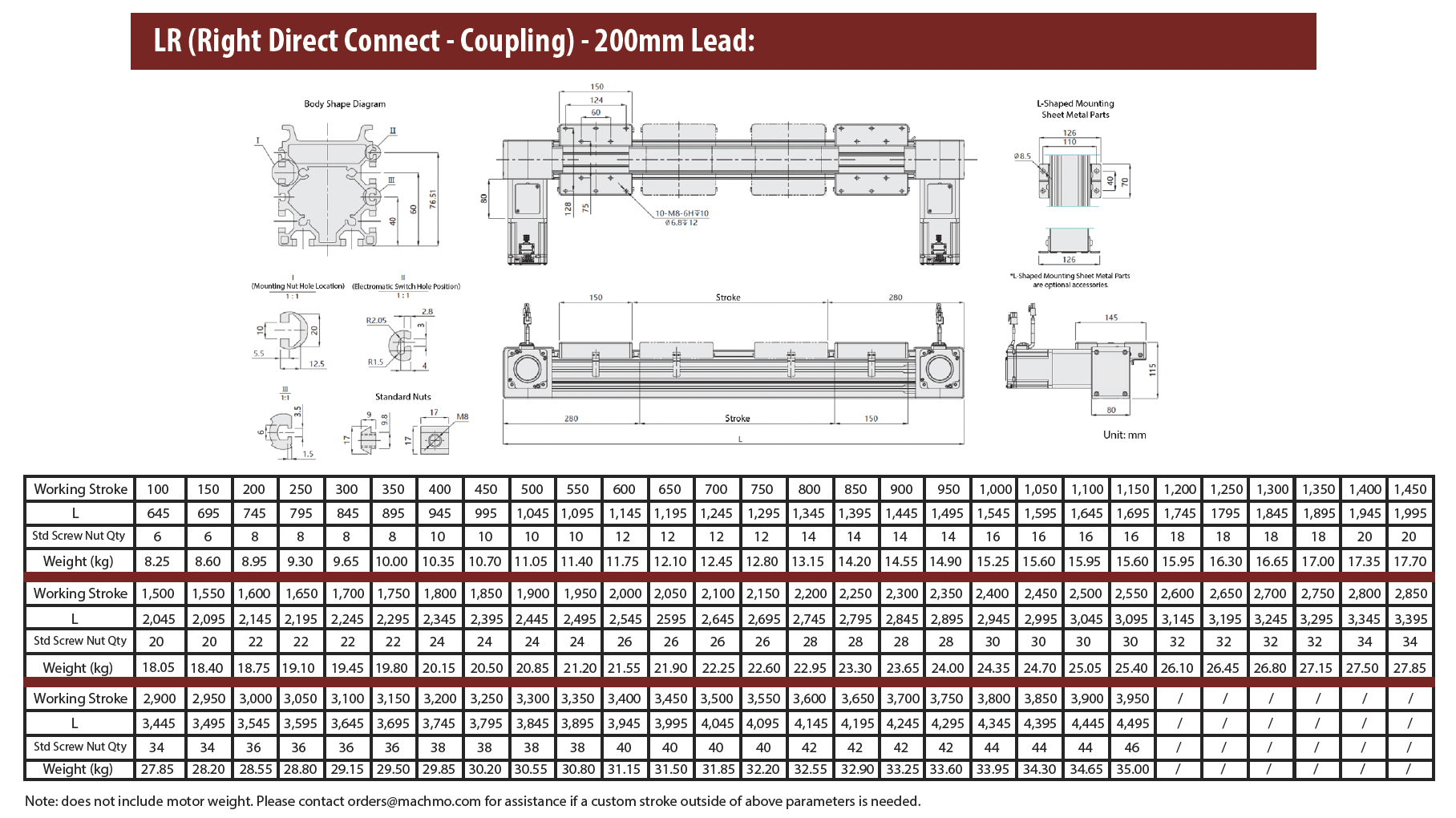

Dimensions
Motor Mount Location
Downloads
Catalog Download: MEB Actuator Catalog.pdf
