- Compatible Motor Size (AC): 400W / 750W / 86 steppers
- Guide Rod Diameter: 6mm
- Lead (mm): 40 / 80
- Horizontal Max Payload (kg): 8
- Vertical Max Payload (kg): 4
- Repeatability: ± 0.05mm
- Max Stroke: 4,000mm

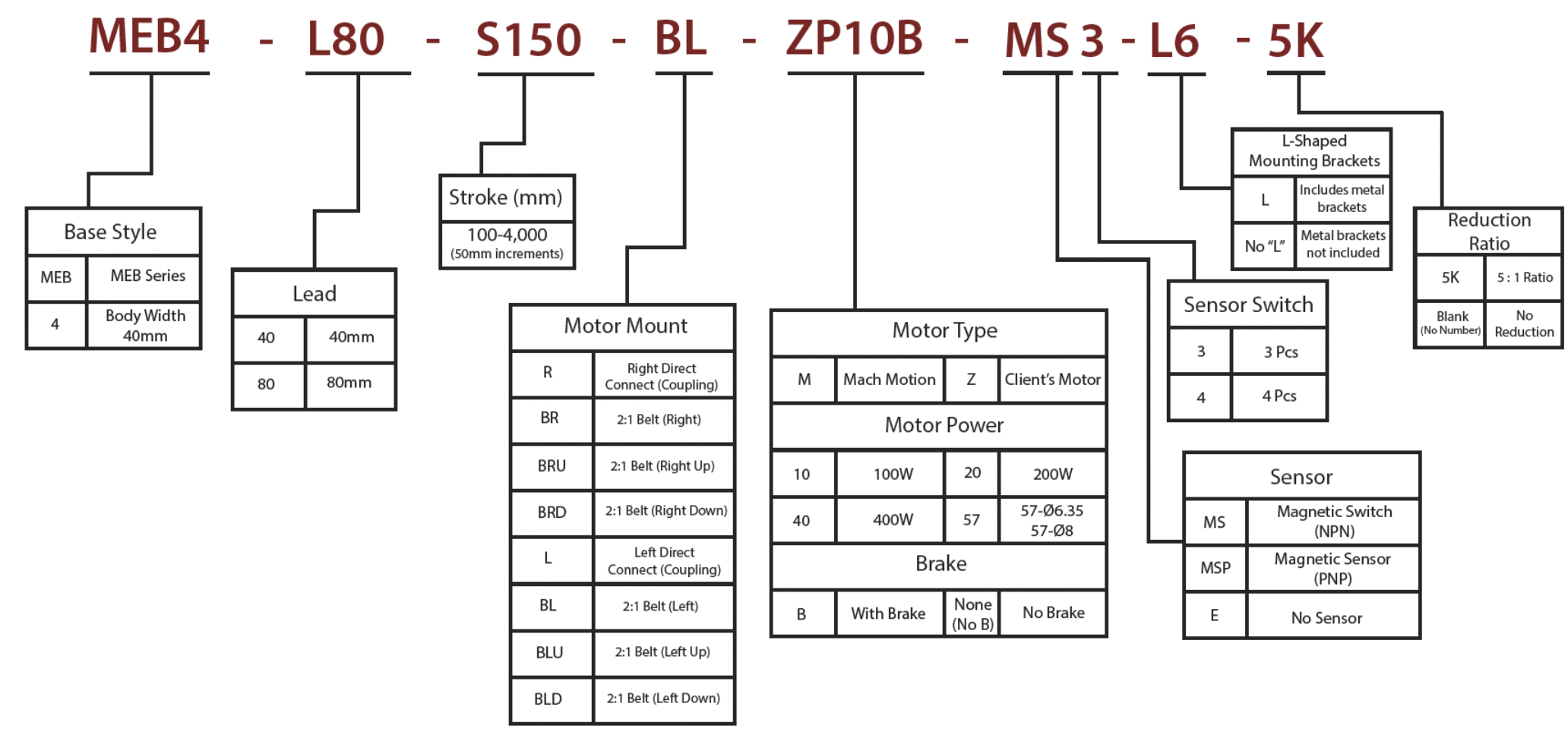

Part Number Configurator
Technical Specifications
| Motor Power (W) | 400W / 750W / 86 stepper | ||
| Drive Type | Timing Belt | ||
| Repeatability (mm) | ±0.05 | ||
| Lead (mm) | 40 | 80 | |
| Max. Speed (mm/sec) | 1,500 | 3,000 | |
| Maximum Payload (kg) | Horizontal | 8 | |
| Vertical | 4 | ||
| Static Allowable Torque | Mx (Nm) | 25 | |
| My (Nm) | 38 | ||
| Mz (Nm) | 53 | ||
| Dynamic Allowable Torque | Mx (Nm) | 15 | |
| My (Nm) | 23 | ||
| Mz (Nm) | 30 | ||
| Synchronous Wheel Diameter (mm) | 25.48 | ||
| Synchronous Belt Width | S5M100 | ||
| Synchronous Belt Tension (N) | 310 | ||
| Guide Rod Diameter (mm) | 6 | ||
| Body Length (mm) | ≤3,500 | ||
| Sensor (Magnetic) | DMSH-NPN | ||
Maximum Static Torque
Maximum Static Torque

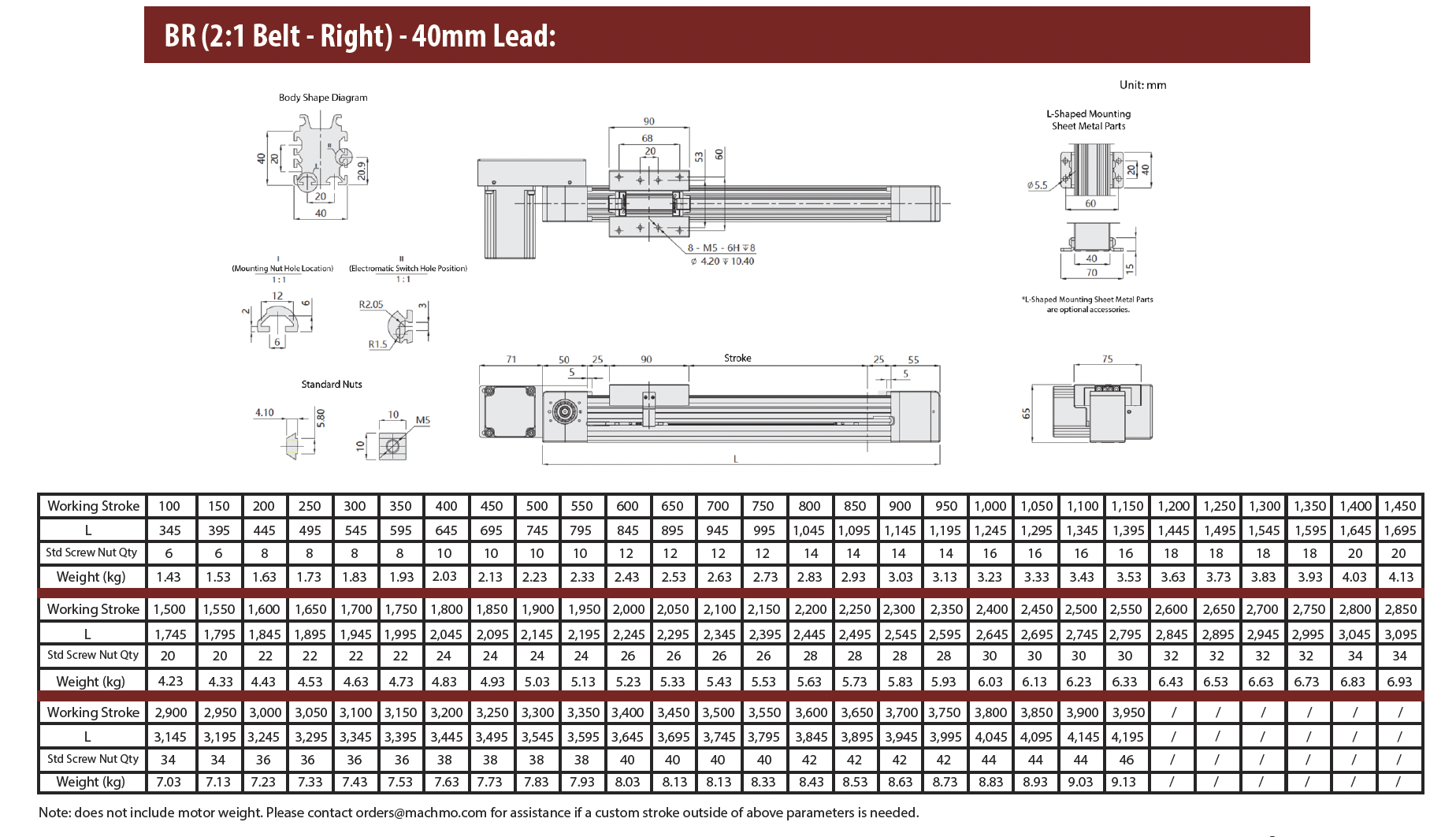

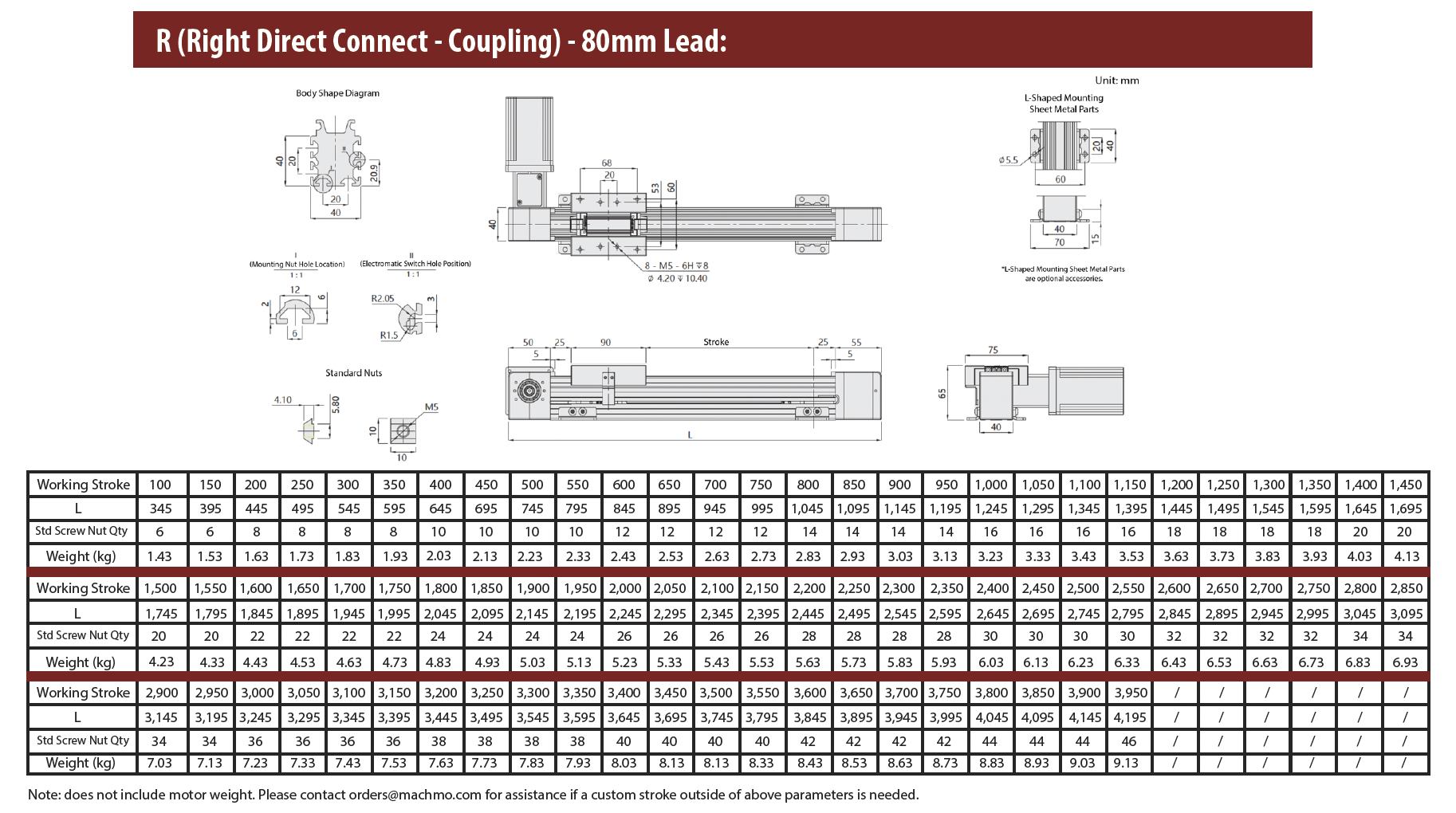

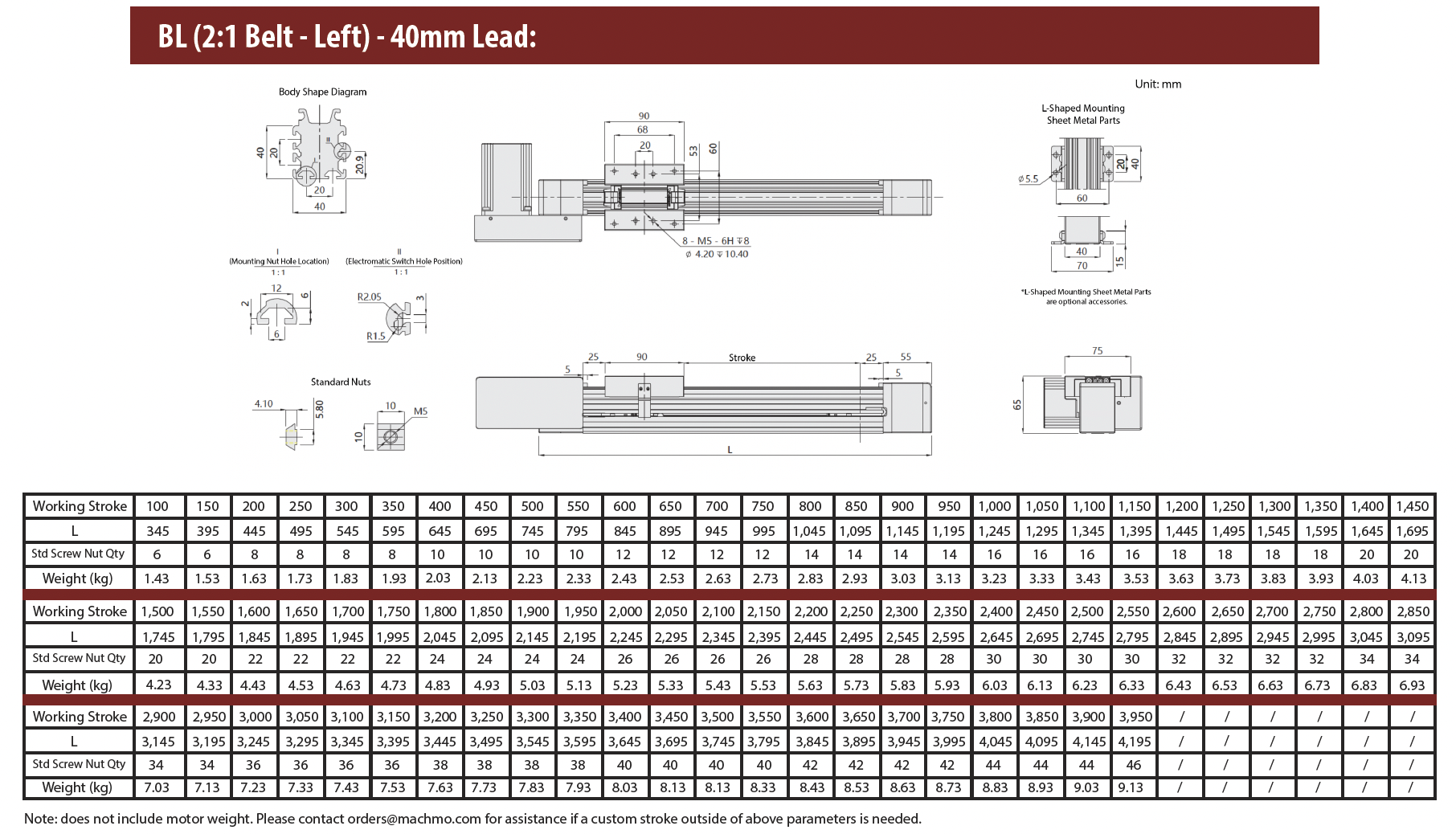

Dimensions
Motor Mount Location
Downloads
Catalog Download: MEB Actuator Catalog.pdf
