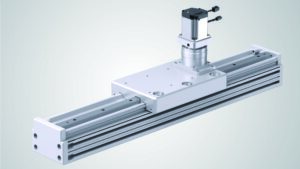

- Compatible Motor Size (AC): 750W / 86 & 110 steppers
- Guide Rod Diameter: 10mm
- Lead (mm): 104 / 208
- Horizontal Max Payload (kg): 100
- Vertical Max Payload (kg): 50
- Repeatability: ± 0.05mm
- Max Stroke: 4,500mm

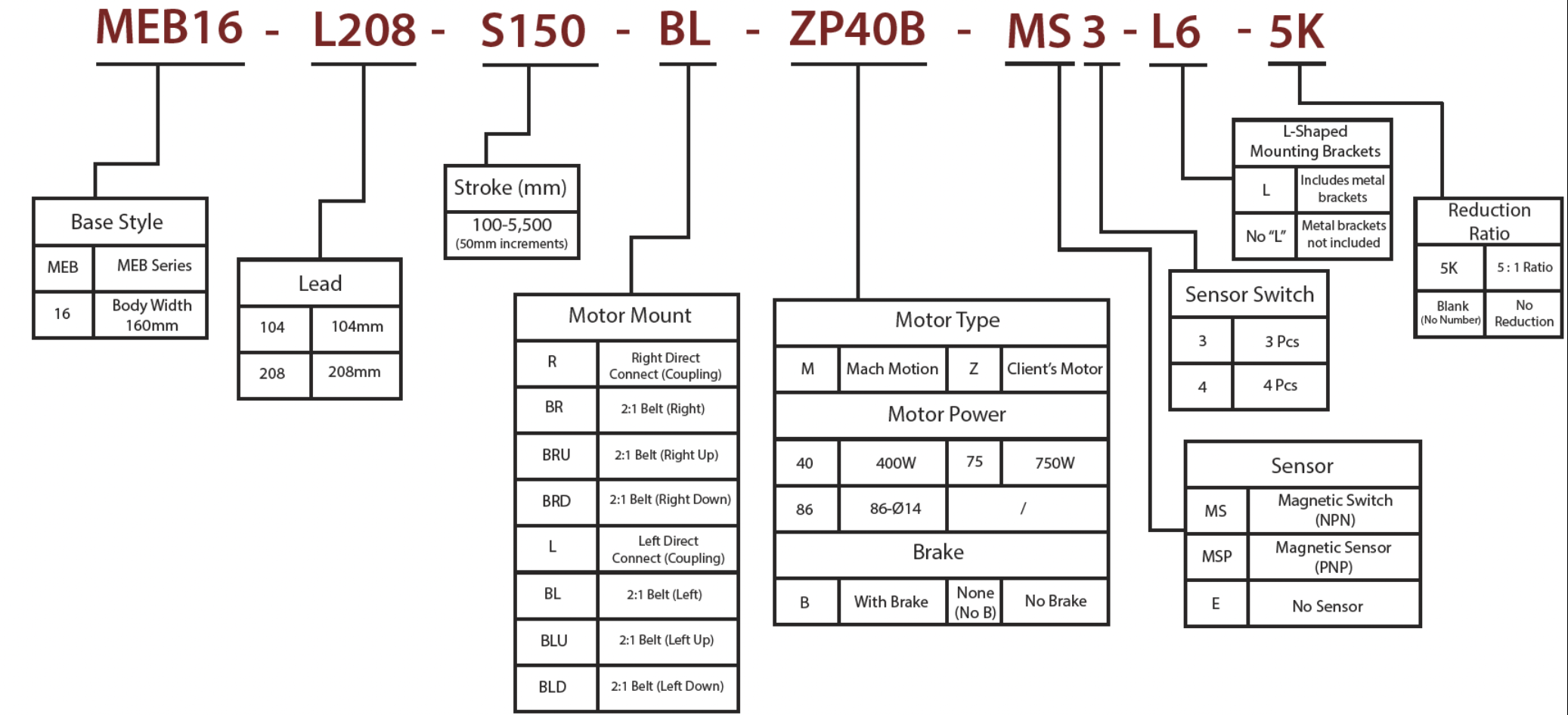

Part Number Configurator
Technical Specifications
| Motor Power (W) | 750W / 86 stepper / 110 stepper | ||
| Drive Type | Timing Belt | ||
| Repeatability (mm) | ±0.05 | ||
| Lead (mm) | 104 | 208 | |
| Max. Speed (mm/sec) | 5,000 | 10,000 | |
| Maximum Payload (kg) | Horizontal | 100 | |
| Vertical | 50 | ||
| Static Allowable Torque | Mx (Nm) | 145 | |
| My (Nm) | 185 | ||
| Mz (Nm) | 235 | ||
| Dynamic Allowable Torque | Mx (Nm) | 120 | |
| My (Nm) | 140 | ||
| Mz (Nm) | 180 | ||
| Synchronous Wheel Diameter (mm) | 66.24 | ||
| Synchronous Belt Width | S8M600 | ||
| Synchronous Belt Tension (N) | 2,482 | ||
| Guide Rod Diameter (mm) | 10 | ||
| Body Length (mm) | ≤4,500 | ||
| Sensor (Magnetic) | DMSH-NPN | ||

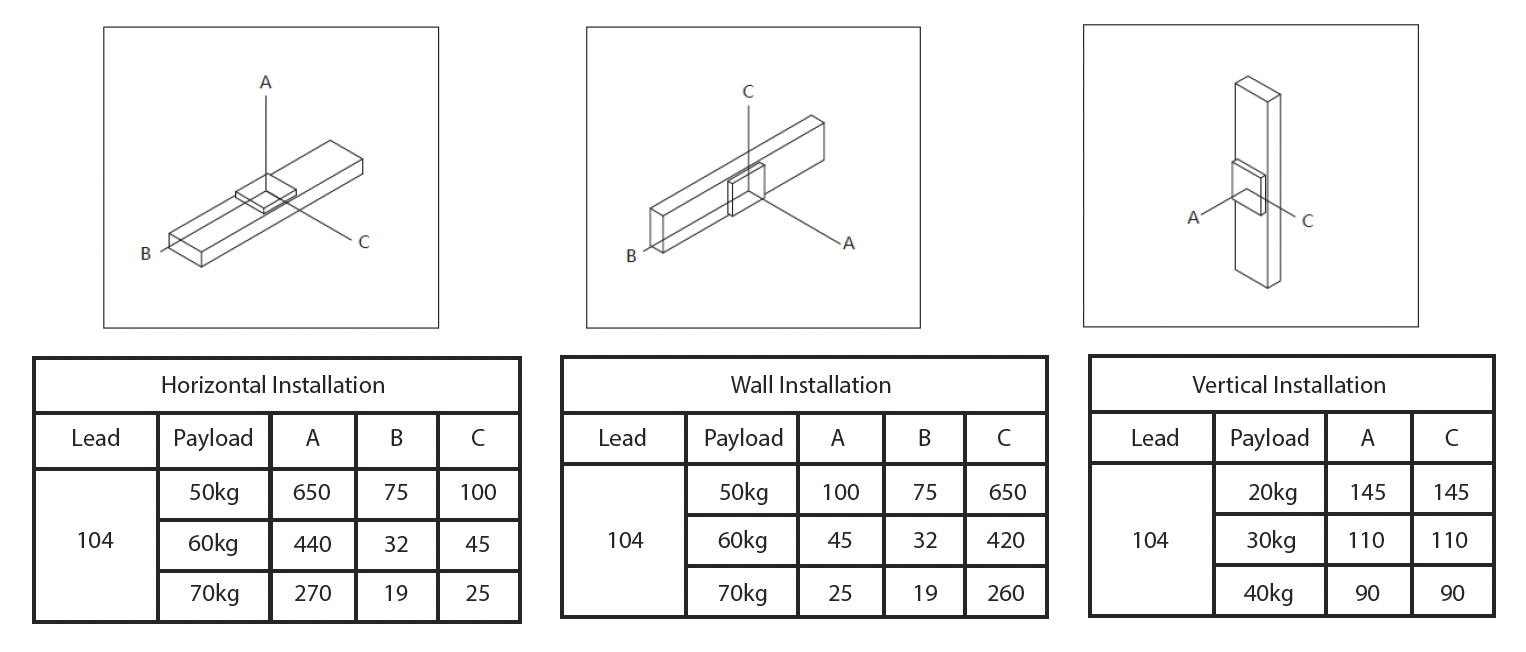

Maximum Static Torque
Maximum Static Torque

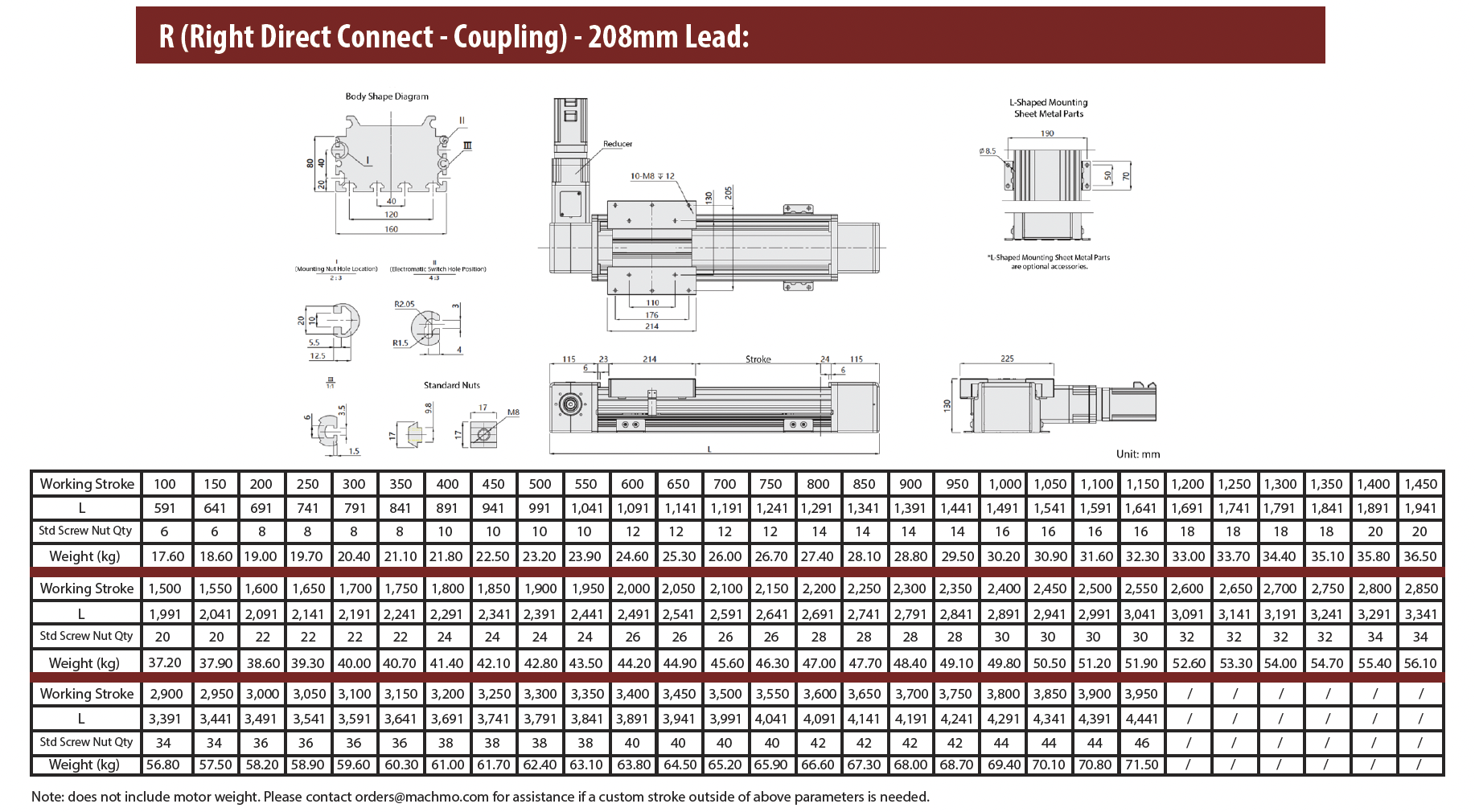

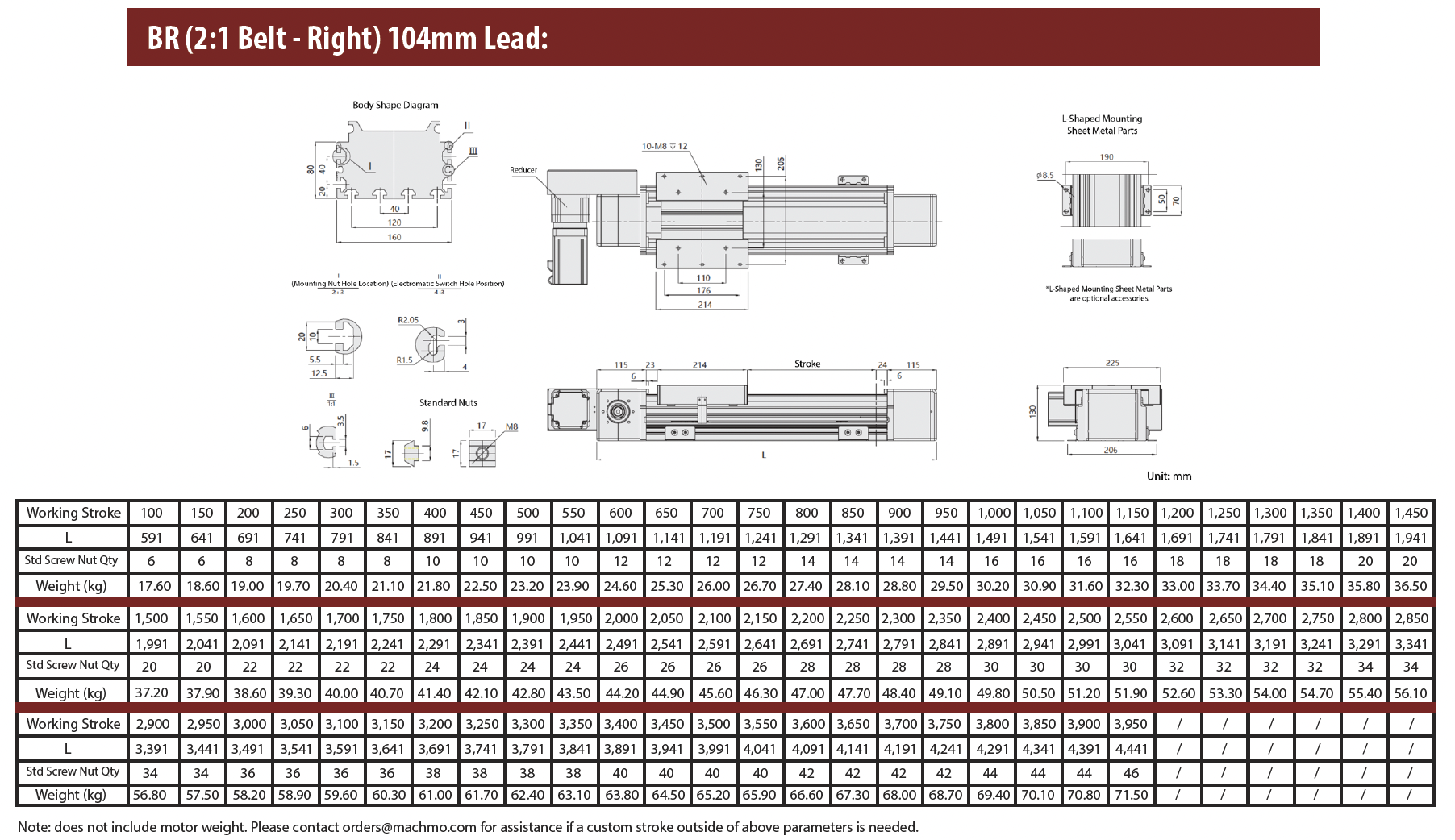

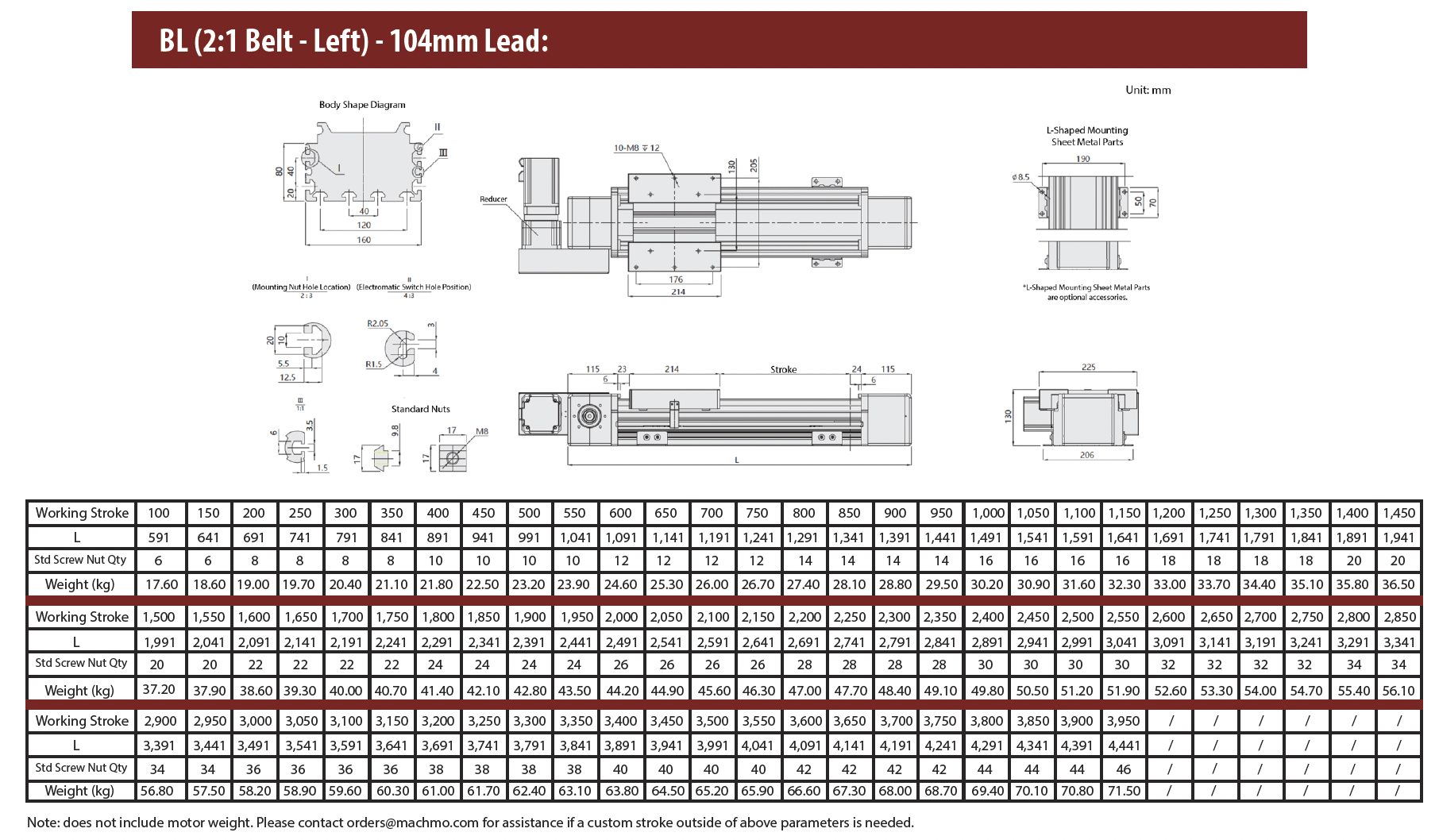

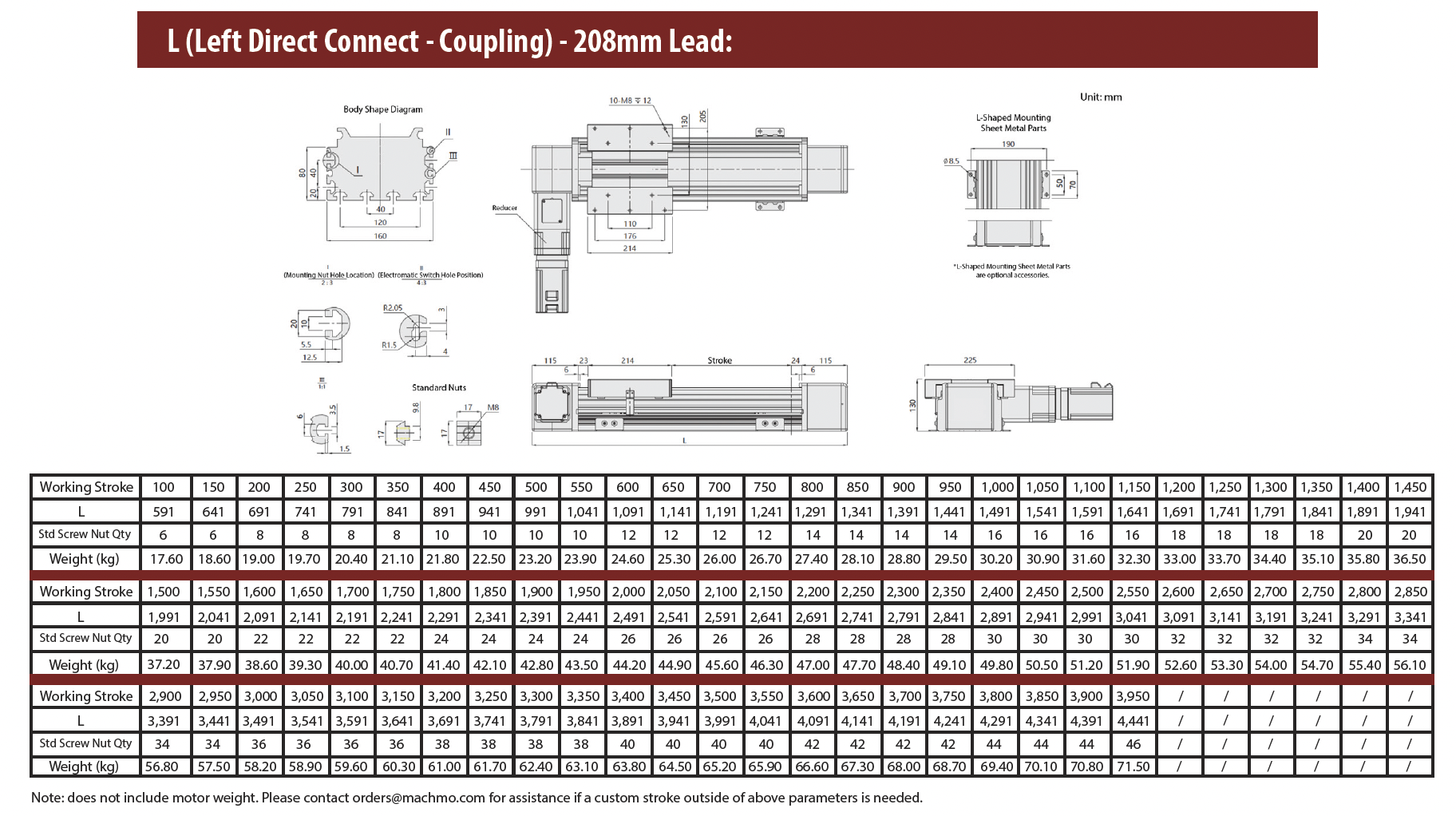

Dimensions
Motor Mount Location
Downloads
Catalog Download: MEB Actuator Catalog.pdf
