- Inline Linear Style
- Actuator Model: 50 mm
- Travel Distance: 0 – 800 mm
- Screw Leads: 5, 10 mm
- Actual Force: 384.42 – 1092.57 lbf | 1.71 – 4.86 KN
- Mounting Method: Output Flange, Horizontal Base, Front or Rear Threaded Flange
- Rod End Options: Male/Female Thread, Joint-bearing, U-pin, Floating Connector
Performance Data
| Reduction Ratio | 1 | 3 | 5 | 7 | |
|---|---|---|---|---|---|
| Screw Lead | mm | 5 | |||
| Servo Motor Power | KW | 1.00 | 0.40 | 0.20 | 0.20 |
| Servo Motor Torque | Nm | 3.18 | 1.30 | 0.64 | 0.64 |
| Servo Motor Speed | RPM | 3000 | |||
| Actual Force | lbf | 760 | 930 | 768 | 1070 |
| Holding Force | lbf | 670 | |||
| Rated Speed | mm/s | 250 | 80 | 50 | 35 |
| Reduction Ratio | 1 | 3 | 5 | 7 | |
|---|---|---|---|---|---|
| Screw Lead | mm | 10 | |||
| Servo Motor Power | KW | 2.00 | 0.75 | 0.40 | 0.40 |
| Servo Motor Torque | Nm | 6.37 | 2.40 | 1.30 | 1.30 |
| Servo Motor Speed | RPM | 3000 | |||
| Actual Force | lbf | 760 | 860 | 7800 | 1090 |
| Holding Force | lbf | 670 | |||
| Rated Speed | mm/s | 500 | 165 | 100 | 70 |

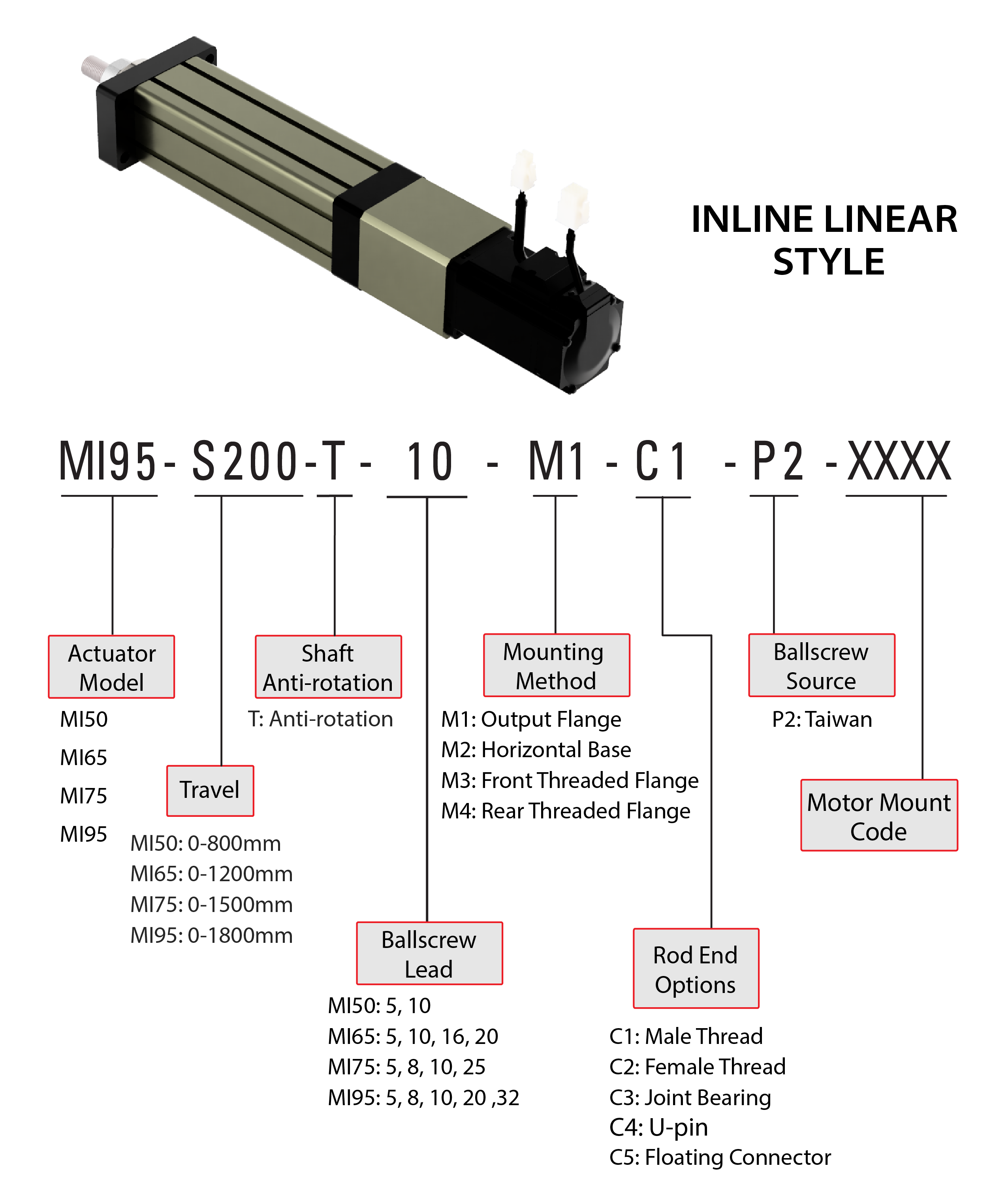

Model Configuration
Rod End Options
Mounting Methods
Downloads
Servo Actuator Catalog: PDF
